electronic eyepiece

Overview

Plug and Play: No driver required for instant setup and real-time observation

Low Light Clarity: Dark light compensation technology enhances image quality in dim conditions

Dual Video Formats: MJPG for 30FPS recording at 1920x1080, YUV for uncompressed high-quality imaging

Live View Sharing: Stream telescope footage to computers for digital capture and sharing

Astrophotography Entry: Affordable solution for lunar/planetary photography (not for deep space)

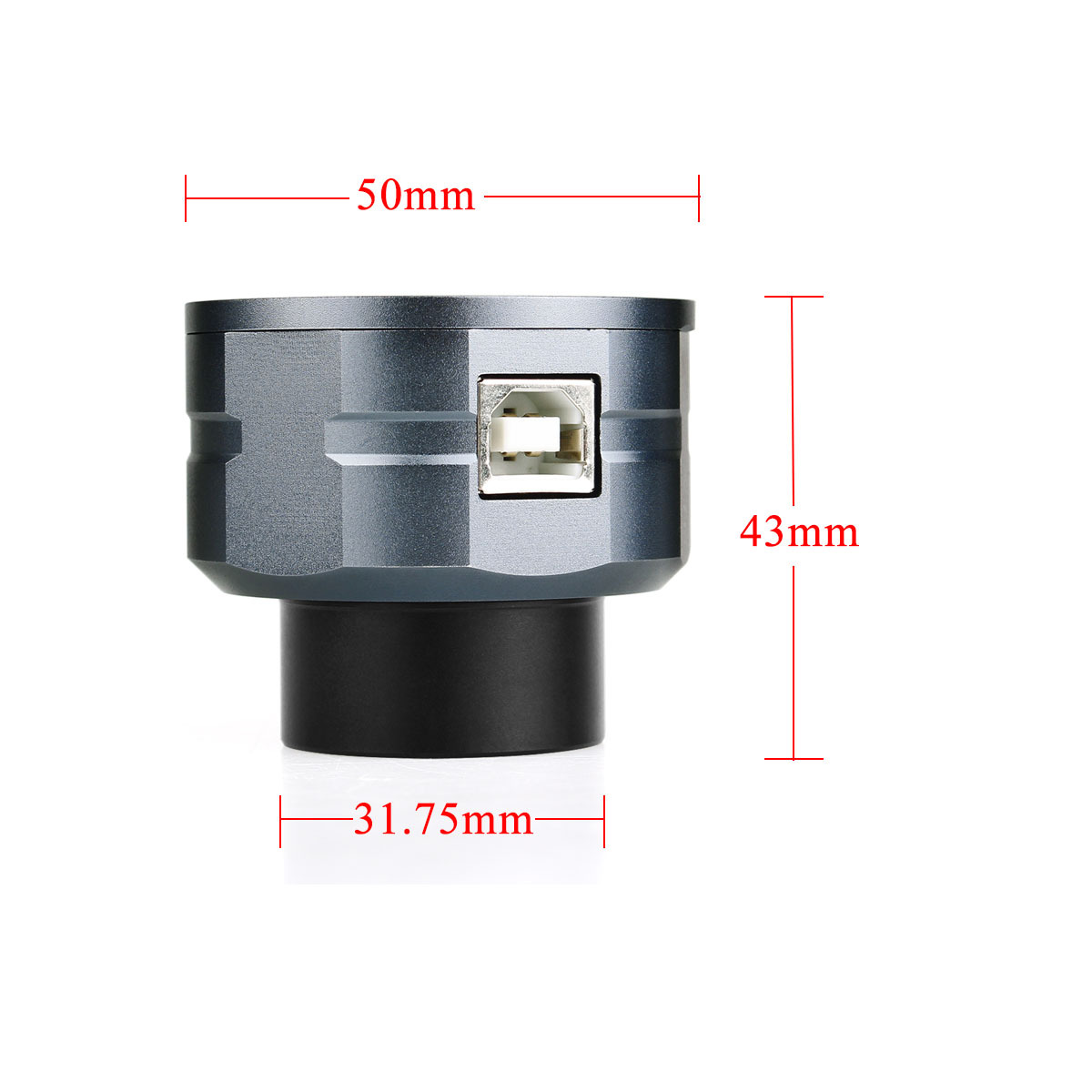

Universal Compatibility: Machined aluminum 1.25" adapter fits most telescopes

Specifications

Sensor: IMX307

Pixel Size: 3?m

Resolution: 1920x1080 (2MP)

Max Frame Rate: 30fps (MJPG at 1920x1080)

Video Formats: MJPG/YUV

ADC: 10-bit

Interface: USB 2.0

Weight: 100g

Material: Aluminum alloy

Operating Systems: Windows/Linux/Mac

Power Consumption: 150mA@5V

Operating Temperature: 0�C to 45�C

Storage Temperature: -10�C to 60�C

Operating Humidity: 20%-80%

Storage Humidity: 20%-95%

Packing List
Electronic eyepiece*1
